Chart Suggestions

The Chart Suggestions feature is a tool based on OpenAI's assistant API. It helps you improve your dashboard by providing suggestions based on your data sources. The suggestions are based on the analysis of aggregate data and they can be used to provide better visualizations and insights.

Note

The Chart Suggestions feature does not send your raw data to the OpenAI API. It sends aggregated data and metadata (e.g. field names and data types) to obtain suggestions.

If this is the first time you are using the Chart Suggestions feature, you need to set up your assistant API url. You can do this by clicking on the Studio Assistant button in the toolbar of the dashboard in the top right corner:

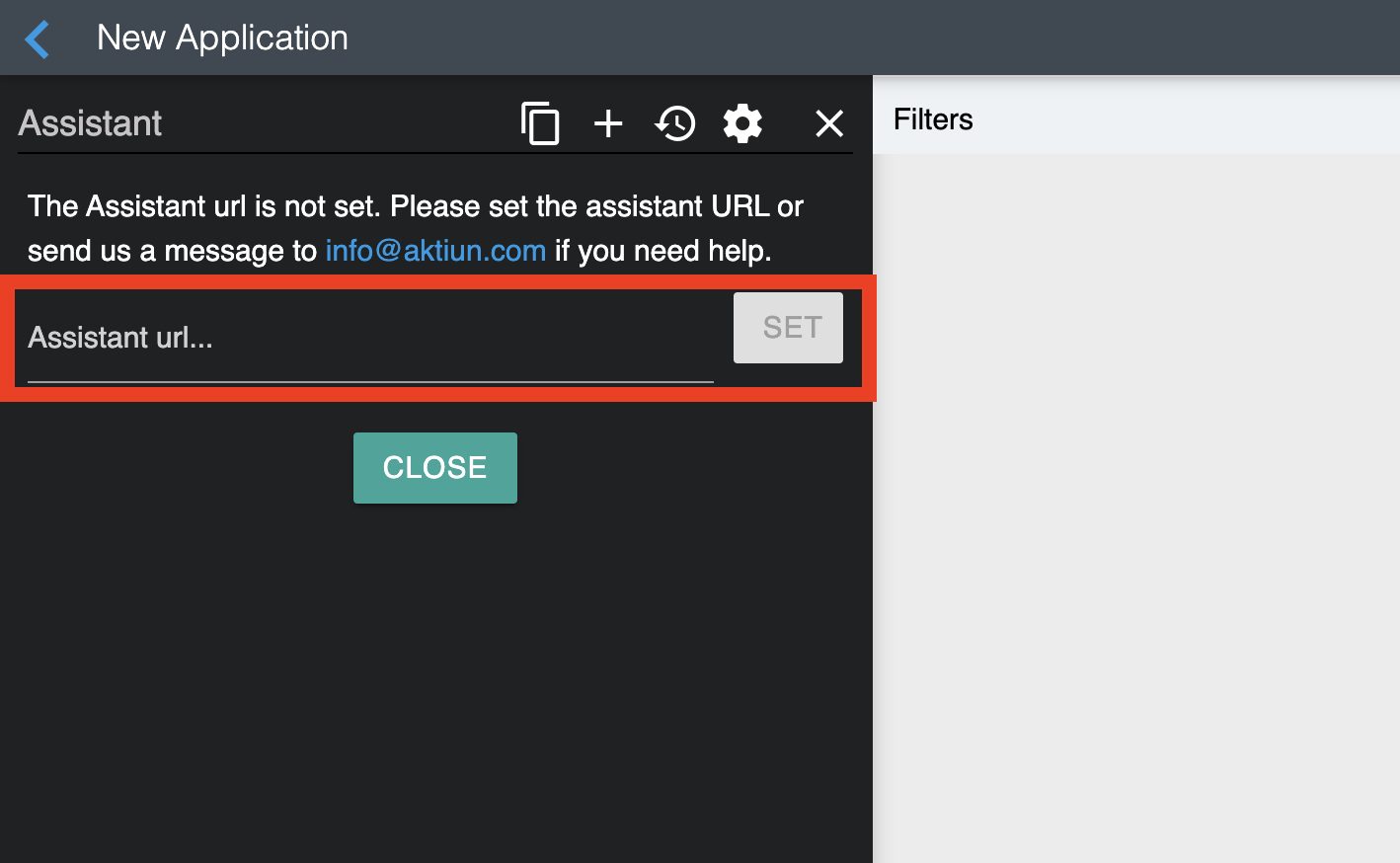

This will open the Studio assistant chat window that will require you to set up the ChartFactor Assistant Service URL:

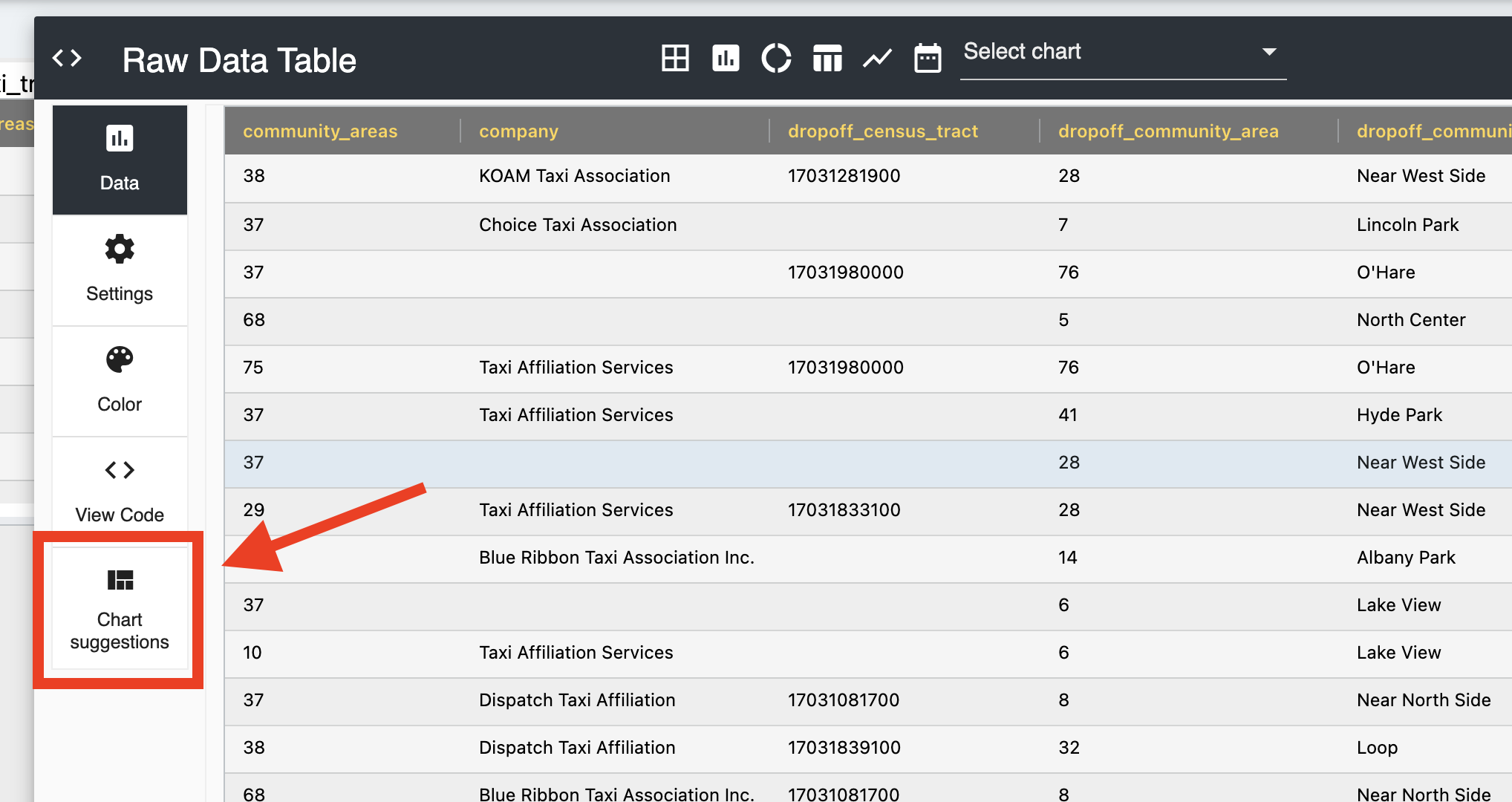

Then you can get chart suggestions when you are in the Chart Editor Modal by clicking on the Chart suggestions button in the left sidebar:


If this is the first time you select the Chart suggestions option for this data source, Studio will auto-generate a list of suggestions based on the data source you are using:


If you don't like the suggestions, you can click on the Regenerate button to get a new set of suggestions.
